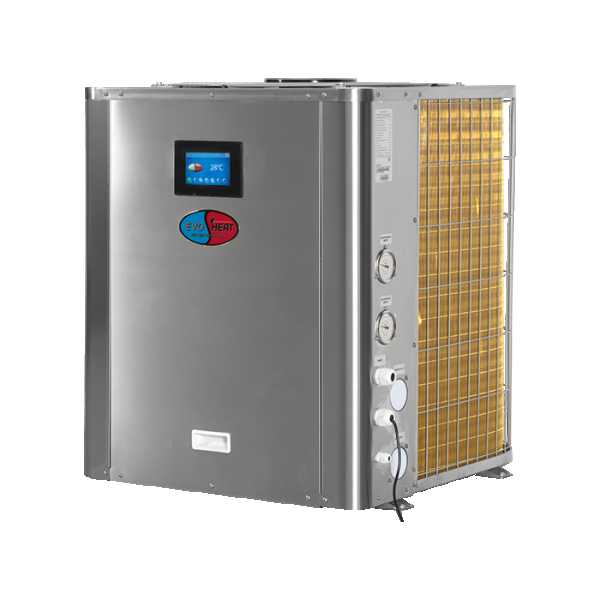

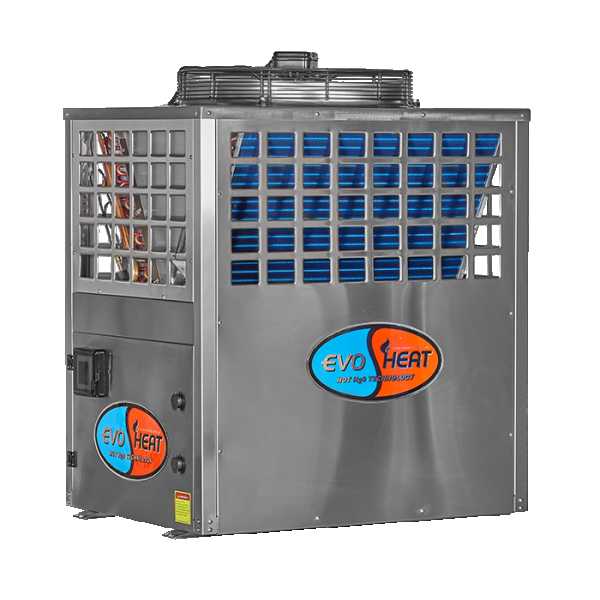

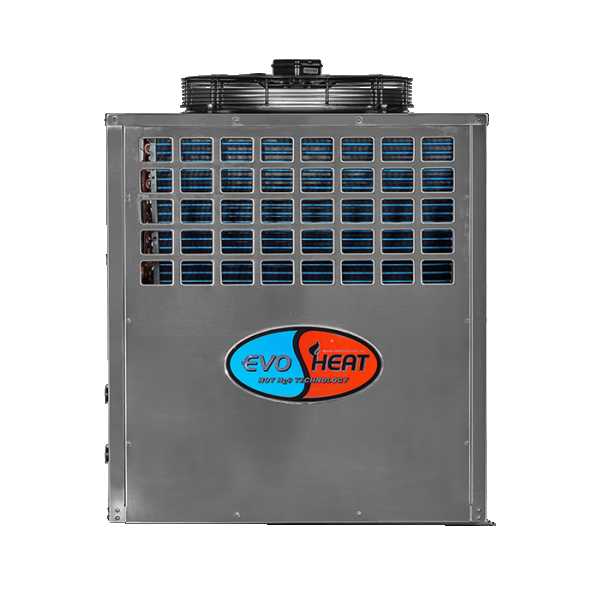

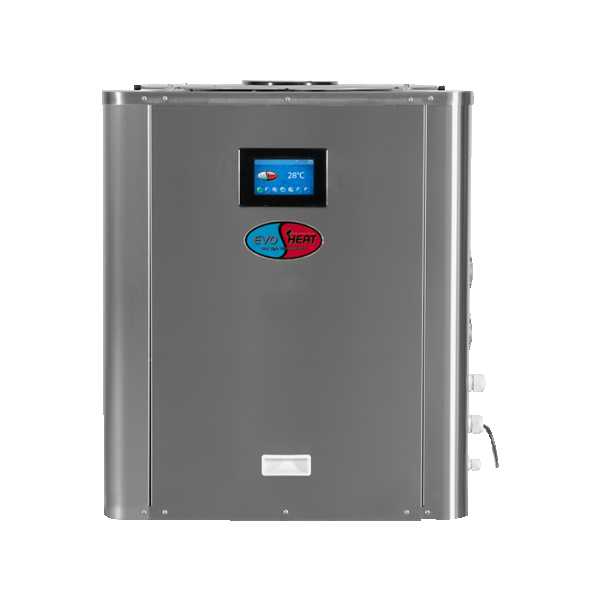

Evo Heat Pump – DHP-R series
Want high-octane, commercial-grade pool heating for your backyard? The Evo DHP-R pool heat pump is ideal for cold climate temperatures, with greater control and energy savings.
Enjoy your pool at any time of the year! The Evo DHP-R is our powerful pool heat pump that is ideal for cold climate temperatures! Designed with a host of premium features including Wi-Fi control, intelligent full colour touch screen controller and a stainless-steel cabinet – the Evo DHP-R will out-smart and out-perform any other pool heater in its class.
- Extremely energy efficient, C.O.P. up to 5.4
- Cold climate performance
- Heating and cooling capability
- Latest cutting edge, intelligent full colour touch screen controller
- Wi-Fi control
- 304 stainless steel cabinet
- Built in operational timer
- Low noise fans
- Additional safety protection (flow switch and high pressure cut outs)
- Eco-friendly R410A refrigerant
- Easy installation
- Vertical discharge air flow
- Guaranteed stable performance from -7 degrees
- Ideal to work with solar PV
Product Features
Ideal For Cold Climate Performance | Reliable and powerful, the Evo DHP-R offers exceptional performance in cold climate conditions. It will out-smart and out-perform any other pool heater in its class. |
|---|---|
Exceptional Performance | The Evo DHP-R delivers pool heating through exceptional performance and at the lowest costs & a C.O.P of 5.4. |
Heating, Cooling & Automatic Modes | The DHP-R series is equipped to automatically heat or cool your pool water based on your set temperature – so you can be sure your pool is always at your desired temperature. |
Cutting Edge Touchscreen Controller | The Evo DHP-R features a cutting edge, intelligent touch screen LCD controller allowing full programmability. Maintain your water temperature to within 0.1 of a degree while maximising optimum heater operating performance. |
Wi-Fi Control | Control your Evo pool heat pump anytime, anywhere with the smart Wi-Fi controller app. Available for iOS and Android, the smart phone controller app offers you an easy and convenient way to monitor and control your pool temperature. |
Intelligent Built In Timers | Take control of your pool heating with our intelligent built in timers. Govern when and how long your Evo heat pump operates to make the most of off-peak energy tariffs or your own created energy via your solar PV. |
304 Stainless Steel Cabinet | The Evo DHP-R features a 304 stainless steel cabinet to ensure long term corrosion resistance. |
Industry Leading Warranty | For further peace of mind – the Evo DHP-R is backed with and industry leading warranty. |
Specifications
|
| DHP20-R | DHP30-R | DHP40-R | DHP50-R | DHP603-R |
|---|---|---|---|---|---|---|
Heating Capacity | kW | 9.7 | 14.0 | 19.0 | 23 | 26 |
Consumed Power | kW |
|
|
|
|
|
C.O.P. | / | 5.3 | 5.3 | 5.2 | 5.4 | 5.3 |
Power Supply | / | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 |
Max Current per Phase | AMPS | 9.1 | 14 | 18.2 | 22.6 | 12.5 |
Connection Type | / | 10 AMP | 15 AMP | Hard wired | Hard wired | Hard wired |
Noise at 1M | dB(A) | 51 | 54 | 56 | 58 | 58 |
Refrigerant | / | R410A | R410A | R410A | R410A | R410A |
PVC Water Connection | mm | 40 | 40 | 40 | 40 | 40 |
Water Flow Volume | L/M | 50 | 75 | 100 | 125 | 150 |
Net Dimensions (L/W/H) | mm | 680/645/720 | 680/645/720 | 700/700/848 | 700/700/848 | 1015/735/1130 |
Weight Packed/Unpacked | kg | 75/65 | 88/78 | 113/110 | 118/111 | 178/151 |
Warranty
For further peace of mind EvoHeat offer an industry leading warranty of 25 years on the Evo Advanced DHP-R titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.
EvoHeat have a comprehensive network of specialist service agents nationally to ensure maximum equipment uptime. Spare parts are kept in stock in the extremely unlikely event that they are required.
SERIES | TITANIUM HEAT EXCHANGER | COMPRESSORS | PARTS | ON-SITE LABOUR |
|---|---|---|---|---|
Evo DHP-R | 25 years | 5 years | 2 years | 1 year |
